How To Install Chevy Bowtie Emblem

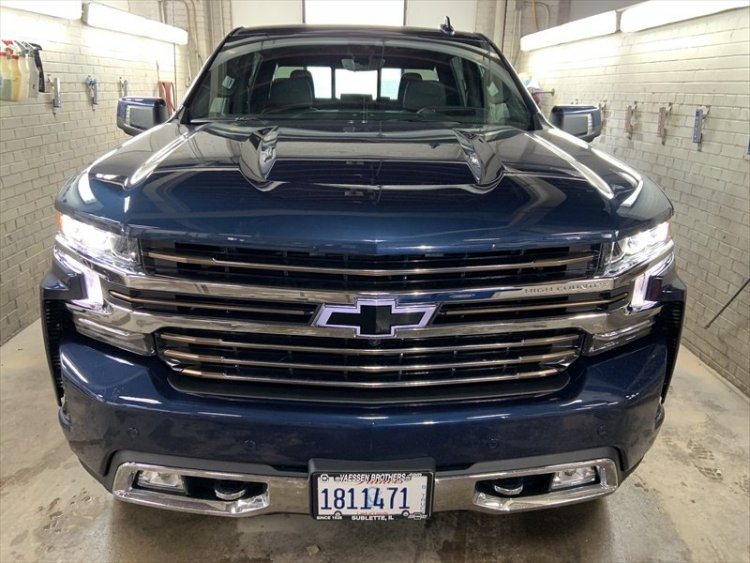

I picked up a GM accessory illuminated front bowtie ($275 list price) from the dealer and installed it today. Looks awesome at night! Hither is a pace by stride to evidence anyone else that wants to install their ain.

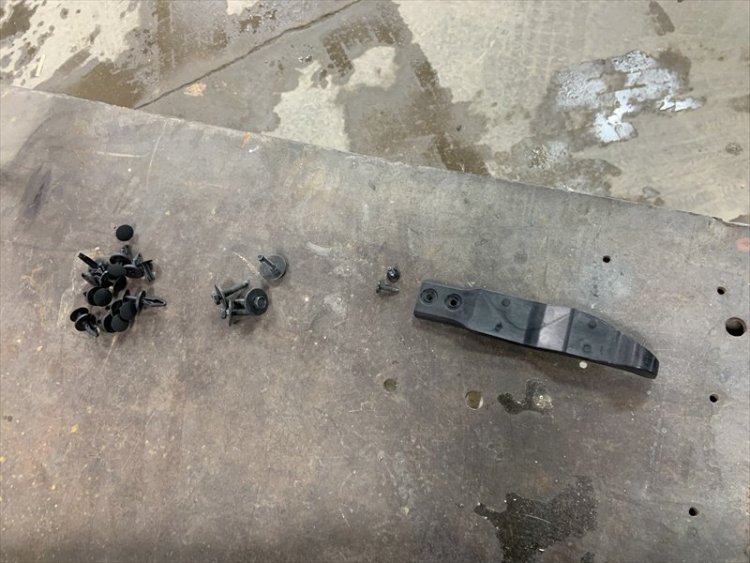

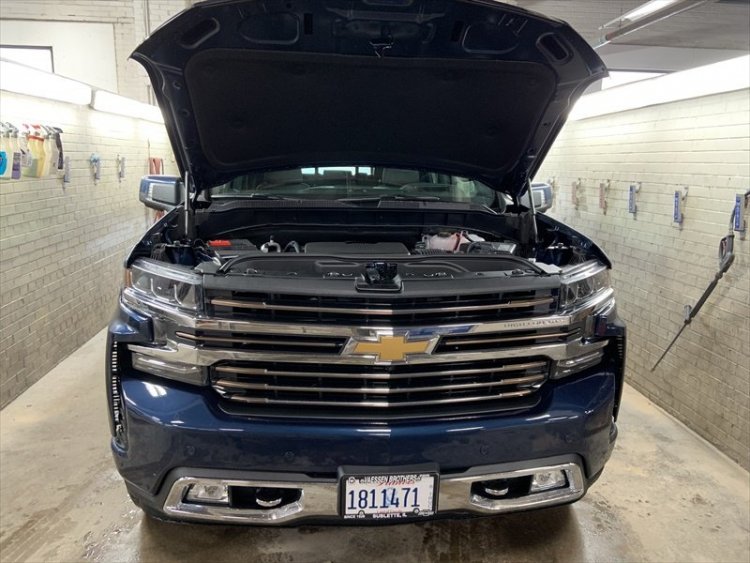

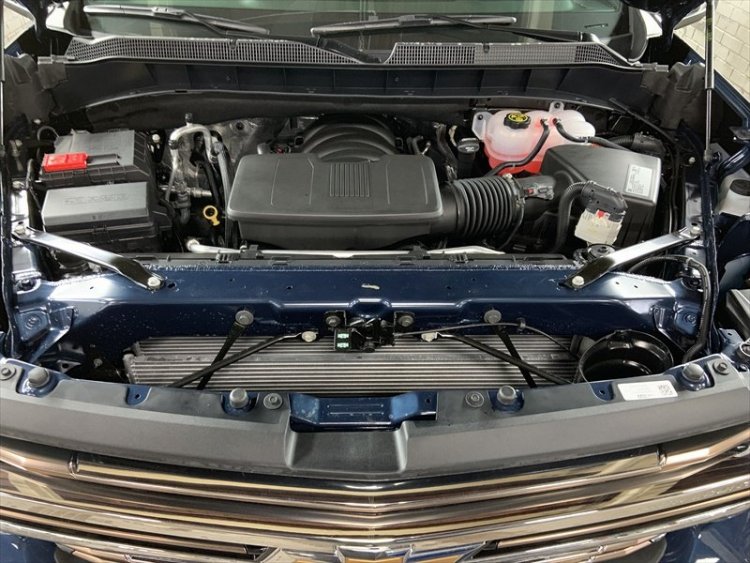

Open the hood and remove the hood safety latch handle, information technology uses 2 torx flake screws. It needs to exist removed to get the upper radiator comprehend off. Take out the push-pins belongings the radiator embrace on and and then remove it. Then have out the 10mm bolts that concord the top of the grill in.

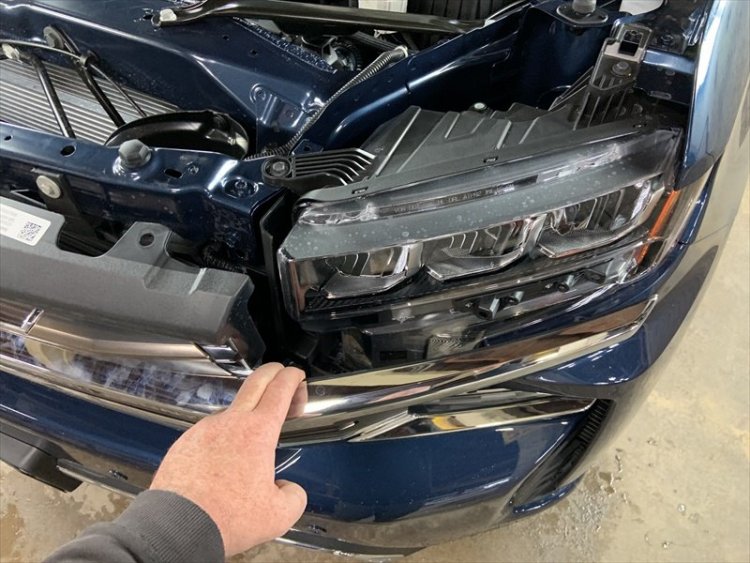

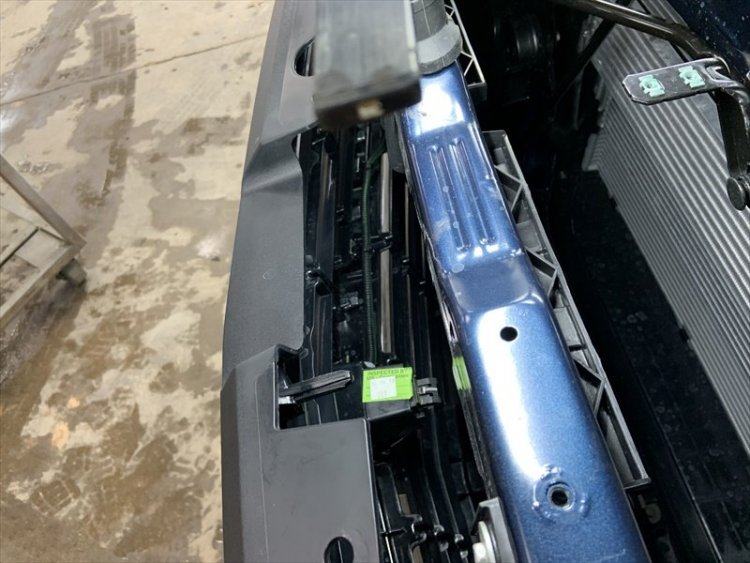

Next pull the acme of the grill out, it has a footling take hold of on all the elevation parts. You have to lift it up and then pull it out. Then grab the grill higher up and below the main bar next to a lite and pull the grill away from the light. It is tight and you will probably think you are going to pause information technology but information technology will come loose. Do the same with the other one. Once the grill is pulled back you can get to the backside of the keepsake.

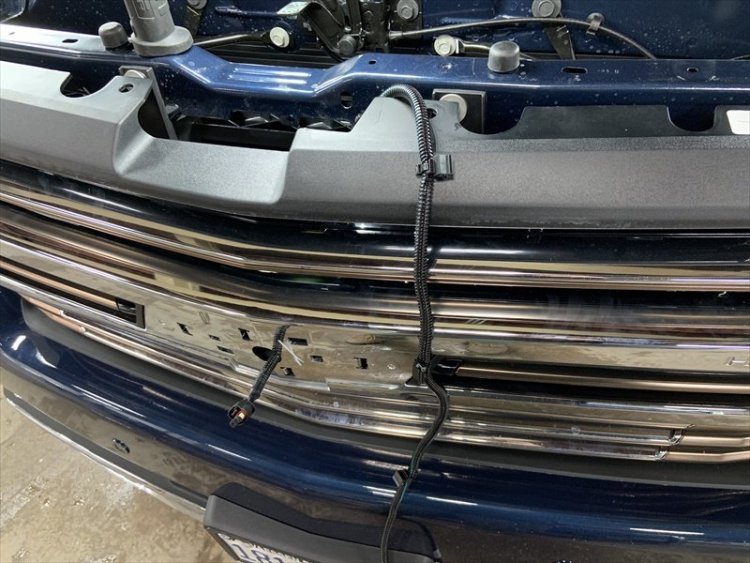

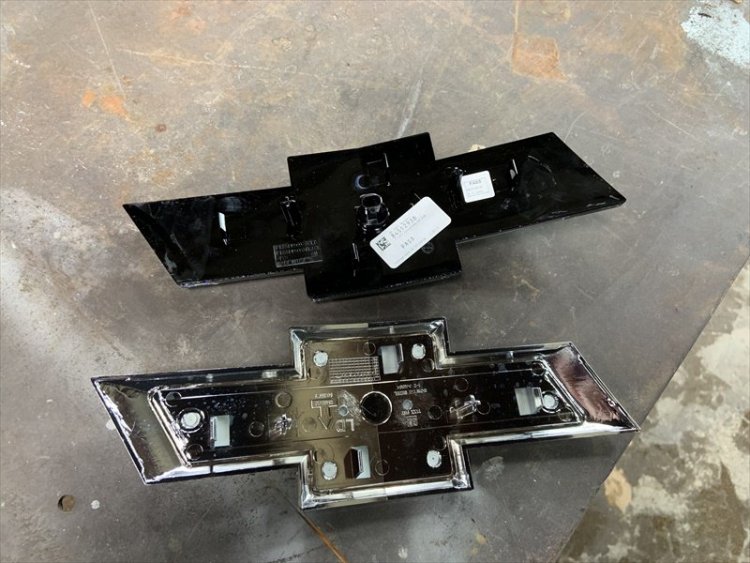

Now you can get the one-time bowtie out, attain in there and 4 tabs agree information technology in. Just push the tabs and information technology will popular out. Once it is out put your wiring through the hole, hook up the new bowtie and snap it into place.

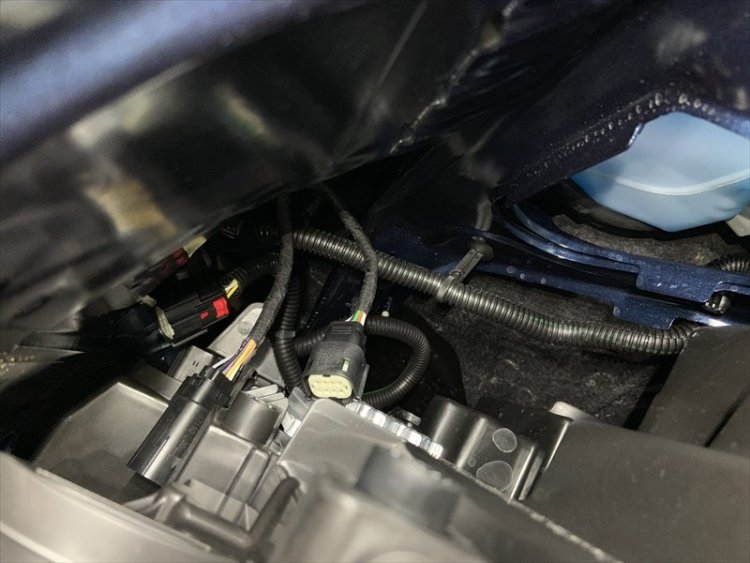

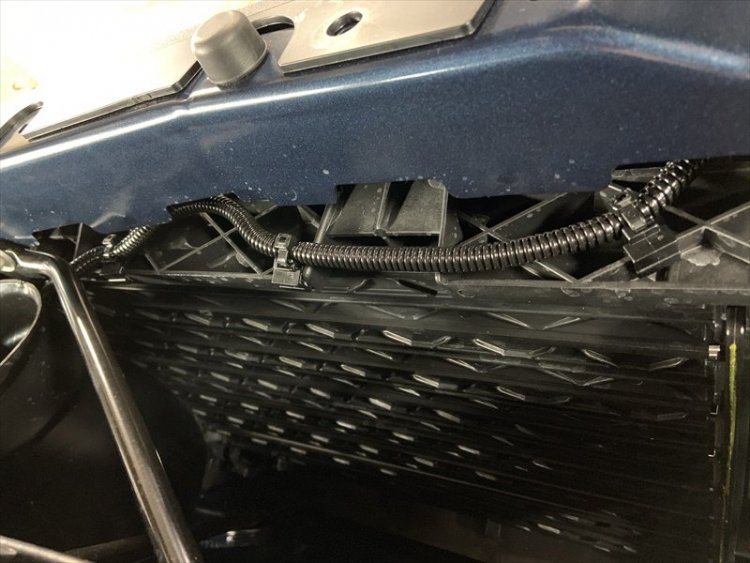

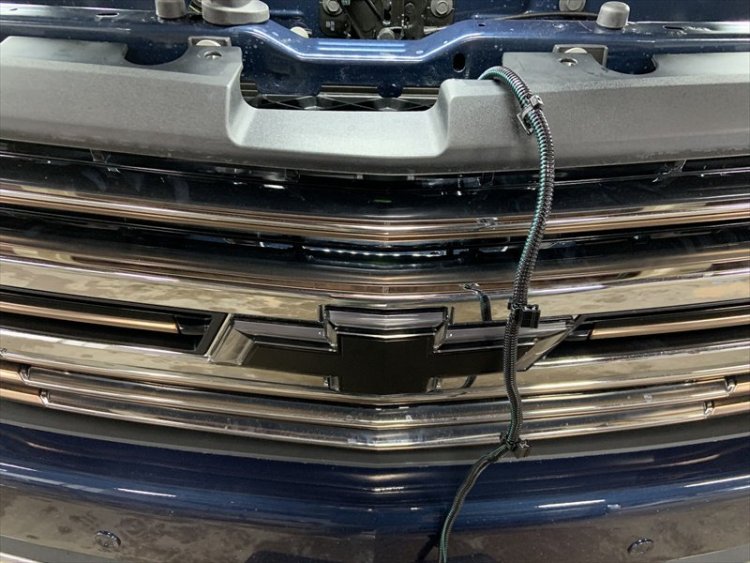

Now run your wiring forth the upper radiator support and in behind the left headlight. And so disconnect the truck headlight connector and connect your illuminted bowtie wiring harness to it, then connect the bowtie harness into the headlight. Secure all the wires and turn on your lights and test it. It should be fully functional.
Ok, at present you merely put everything dorsum together in reverse order. Getting the grill all snapped dorsum in is easier with ii people to line everything upwards. Make sure you accept all the tabs and pins lined upwardly before you push it in or you could snap them off. The grill is sort of at an angle and you have to lift, line up all pins and tabs and then button it in.
